12 Autoloader Panel Overviews

SuperLoader™ 3 Quick Start Guide

Autoloader Panel Overviews

The front panel allows you to configure the autoloader, enter commands, and obtain

status information.

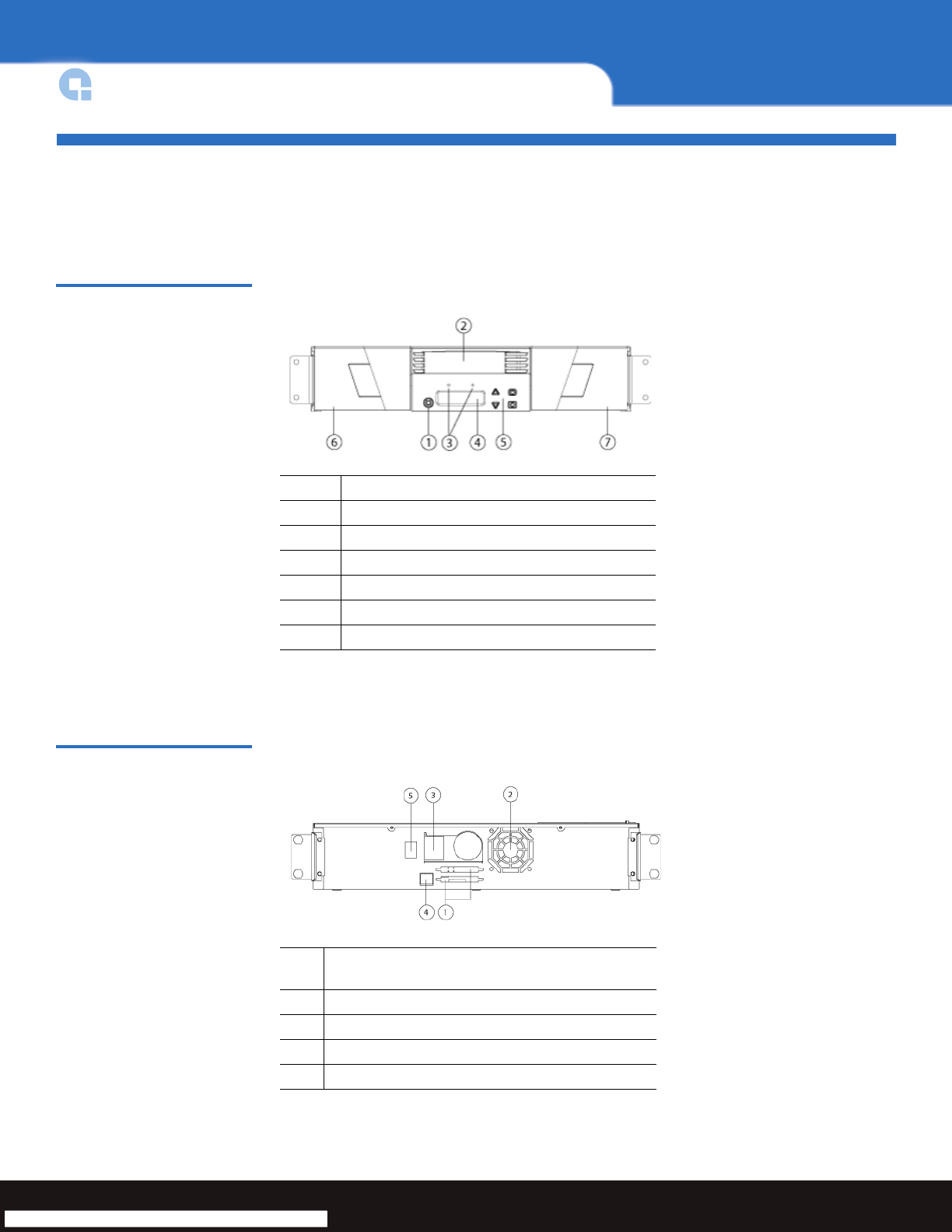

Figure 8 Front Panel Overview

The Ethernet connector on the back panel allows you to connect to the autoloader remote

management interface.

Figure 9 Back Panel Overview

1 Power switch

2Mailslot

3 Front panel LEDs

4 Front panel LCD screen

5 Function keys

6 Left magazine (or blank)

7 Right magazine (or blank)

1 68-pin HD SCSI connectors (or a Fibre Channel or

SAS connector)

2Fan vent

3 Power connector

4 Autoloader remote management Ethernet port

5 Power switch
